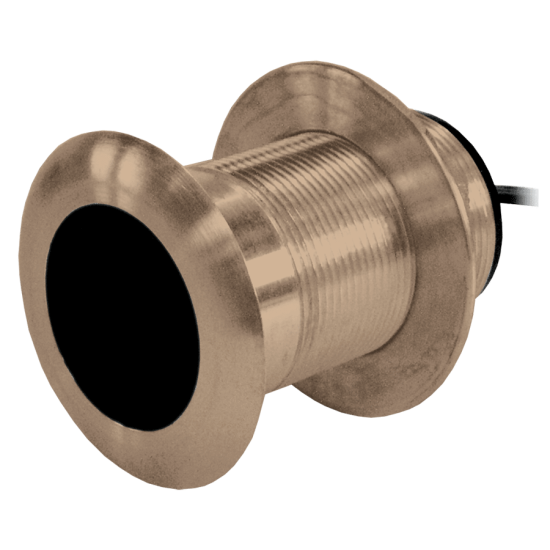

Airmar B150 0° Tilt, Navico 9-Pin

Airmar’s B150M delivers a great combination of shallow and mid-depth performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600') with ultra-clear target resolution. Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish—ideal for freshwater, inshore, or coastal fishing in shallow to medium depth.

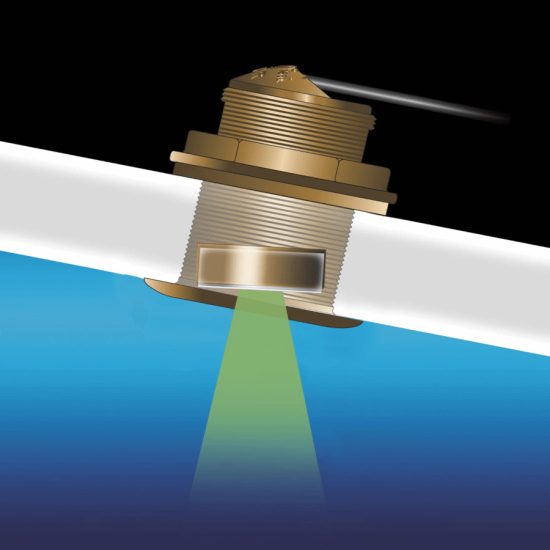

Tilted Element^™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Available in three Tilted Element models:

Fixed 20° tilted version for 16 to 24° hull deadrise angles

Fixed 12° tilted version for 8 to 15° hull deadrise angles

Fixed 0° tilted version for 0 to 7° hull deadrise angles

Depth and fast-response water-temperature sensing

300 W of power with a maximum depth of 183 m (600')

Medium frequency: 95 to 155 kHz

26° x 17° beamwidth put more energy on targets for great target separation

60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing

Low-profile, thru-hull housing provides good display resolution at speed when installed properly

Recommended for stepped, planing, or displacement hull

Bronze housing for use in a fiberglass or wood hull

Also available as a transom mount (TM150M)

Patented Xducer ID^® technology

Specifications:

Acoustic Window: Urethane

Cable-Length: 10 m (33')

Common Use: Leisure/Yachting, Fishing

Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin

Country of Origin: USA

Cross Reference: 000-13920-001

Deadrise Range: 0° to 7°

Display Connector: 9N

Frequency Band: Medium

Material: Bronze

Max Deadrise: Up to 24°

Max Depth: 183 m (600')

Medium Frequency: 95-155 kHz

Medium Frequency Beamwidth: 26°-17°

Retractable housing: No

Single or Dual Frequency: CHIRP-Ready Single-Band

Tilt Angle: 0°

Tilted Element: Yes

Weight: 1.4 kg (3 lb.)

Power Rating: 300 W

Max Deadrise Angle: 24°

Functions: Depth, Temperature

Hull Material: Fiberglass or wood

Mounting Style: Tilted Element Thru-Hull

Max Vessel LOA: Up to 8 m (26')

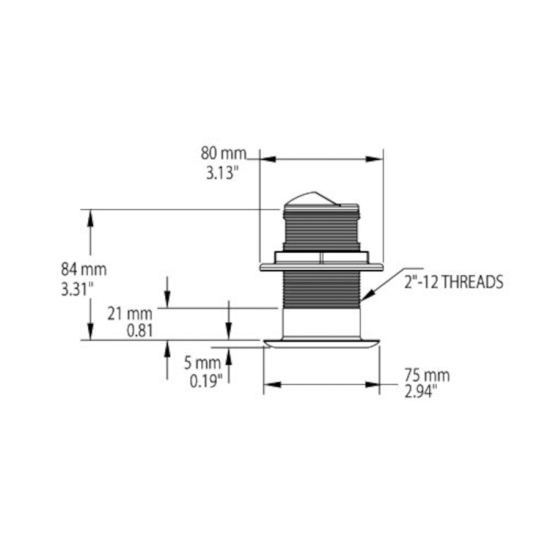

Hole Size: 51 mm (2")

Usable Shaft Length: 66.5 mm (2.62")
